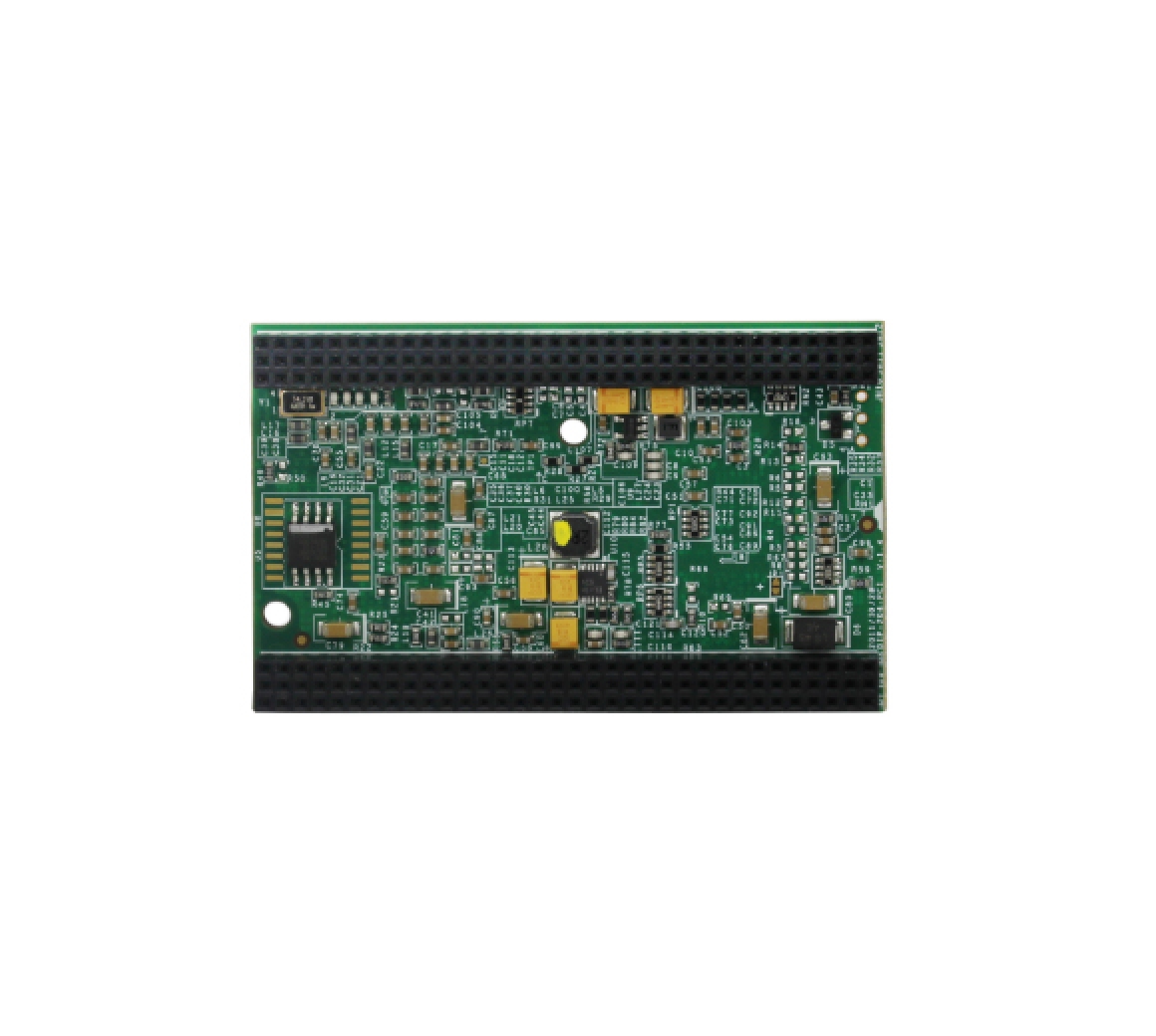

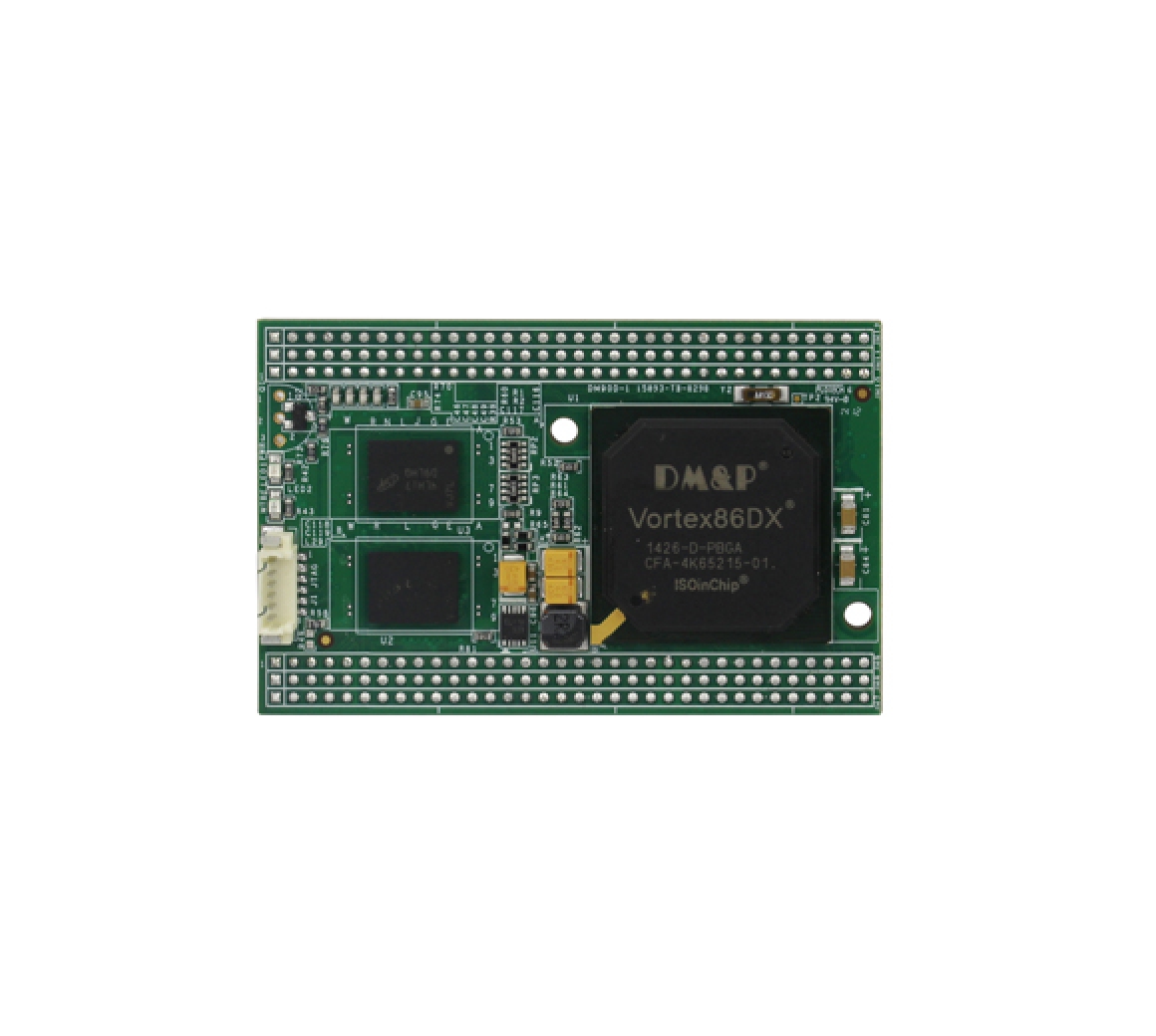

嵌入式单板电脑系统模块 ICOP专有 VDX-DIP-PCIRD

5S/4U/LAN/IDE/PCI/32GPIO/PWM

加入心愿单

Category: 昭营科技ICOP

Description
Reviews (0)

Description

处理器	DM&P SoC CPU Vortex86DX- 800MHz Real-Time Clock with Lithium Battery Backup
缓存	L1:16K I-Cache, 16K D-Cache L2 Cache 128KB
总线	PCI interface
BIOS	AMI BIOS
系统存储器	256/512MB DDR2 onboard
看门狗定时器	Software programmable from 30.5μ sec. to 512 sec. x 2 sets (Watchdog 1 fully compatible with M6117D)
网路	Integrated 10/100Mbps Ethernet
闪存支持	Onboard 4MB SPI Flash Disk
I/O接口	Enhanced IDE port (UltraDMA-100/66/33) x1 RS-232 port x5 (TX/RX x1) USB port x4 16-bit GPIO port x2
端口	1.25mm 6-pin wafer for JTAG x1
功率要求	Single Voltage +5V @ 380mA
重量	23g
尺寸	70 x 45mm (2.75 x 1.77 inches)
工作温度	-20°C ~ +70°C -40°C ~ +85°C (Optional)

料号	说明
VDX-DIP-PCIRD	Vortex86DX DIP-204pin-PCI CPU Module with 256MB DDR2
VDX-DIP-PCIRD-512	Vortex86DX DIP-204pin-PCI CPU Module with 512MB DDR2
