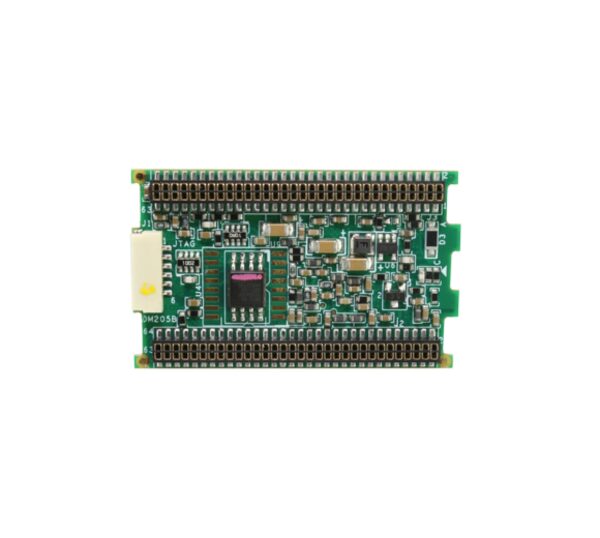

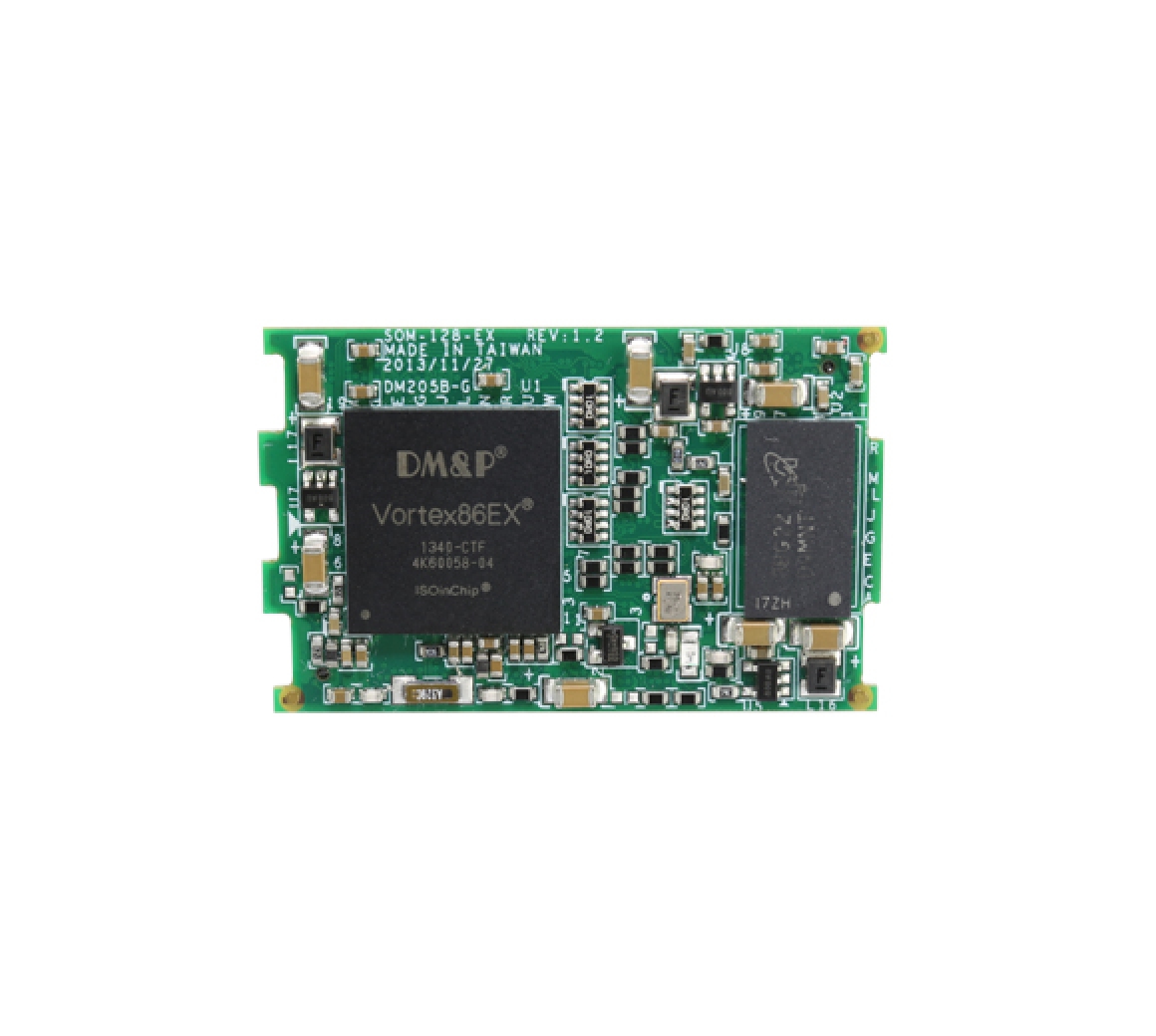

嵌入式单板电脑 系统模块 ICOP专有 VEX-SOM DM&P SoC Vortex86EX- 400MHz
4S/2U/LAN/LPT/24PWM/i2c/SPI/Audio/PCIe/ISA/GPIO/SATA/8ADC
Description
| 处理器 | DM&P SoC CPU Vortex86EX 400Mhz with FPU | ||||
| 缓存 | L1: I/D-Cache 16/16KB L2:128KB |
||||
| 系统存储器 | 128MB DDR3 Onboard | ||||
| 闪存支持 | 128MB Onboard 7.5MB SPI Flash Disk | ||||
| I/O接口 | Integrated 10/100Mbps Ethernet x 1 SATA v1.0 x 1 (Secondary IDE Channel) PCIe v1.1 x 1 USB v2.0 x 2 ADC 11-bit 100K/s x 8 channels |
||||
| I/O可编程支持10个端口 （80针） |
功能 | 说明 | 最大值 | 单位 | |
| GPIO | General Purpose Input/Output | 80 | bit | ||
| UART | 16C550/16C552 compatible | 10 | port | ||
| TX/RX UART | UART with only TX/RX pin | 8 | pair | ||
| UART TXDEN | RS485 Auto direction control | 8 | bit | ||
| x-ISA | selectable for 8/16 bit and all other signals(Only 1 DMA channel) | 1 | bit/ port | ||
| MCM | Motion control module | 3 | port | ||
| Printer | Printer Port | 1 | port | ||
| SD/eMMC | SD/eMMC | 1 | port | ||
| SPI | Serial Peripheral Interface | 2 | port | ||
| CAN | Controller Area Network | 1 | port | ||
| I2C | Inter-Integrated Circuit | 1 | port | ||
| USB Device | USB Device port, version:1.1 | 1 | port | ||
| LAN LED | Link and Duplex LED for build-in Ethernet | 2 | bit | ||
| Keyboard | PS/2 Keyboard | 1 | port | ||
| Mouse | PS/2 Mouse | 1 | port | ||
| WDTOUT | WatchDog timeout signal | 1 | bit | ||
| CLK OUT | Clock output select from 14.318MHz /24MHz /25MHz ISA Clock | 1 | bit | ||
| MTBF | MTBF flag output | 1 | bit | ||
| HD Audio | High Definition Audio | 1 | port | ||
| 功率要求 | Single Voltage +5V @ 380 mA (typical) | ||||
| 重量 | 10g | ||||
| 尺寸 | 45(L)mm x 28(W)mm x 7(H)mm (1.77 x 1.1 inches) | ||||
| 工作温度 | -20℃ ~ +70℃ -40℃ ~ +85℃ (optional) | ||||
| 操作系统支持 | DOS Linux ( Kernel 2.6.24 or later, i486 mode) Windows CE 5.0, CE 6.0, Compact 7 VxWorks 5.5 & 6.8 QNX 6.3.2 FreeBSD, OpenBSD and NetBSD. Other Real-Time OS has 486 supports, for example, RTOS-32. |
||||
| 品名 | 说明 |
|---|---|
| VEX-SOM | Vortex86EX SOM 128 pin CPU Module with 128MB DDR3 |
| VEX-SOM-X | Vortex86EX SOM 128 pin CPU Module with 128MB DDR3, -40°C ~+85°C support |
| VEX-SOM-DEV | VEX-SOM Development Board*1 MINI-PCI-E VGA cable*1 GPIO cable*5 Mini PCI VGA Board*1 Mini PCI Express to PCI express converter*1 PRINT PORT cable*1 Y cable(1 Male to 2 Female)*1 |
