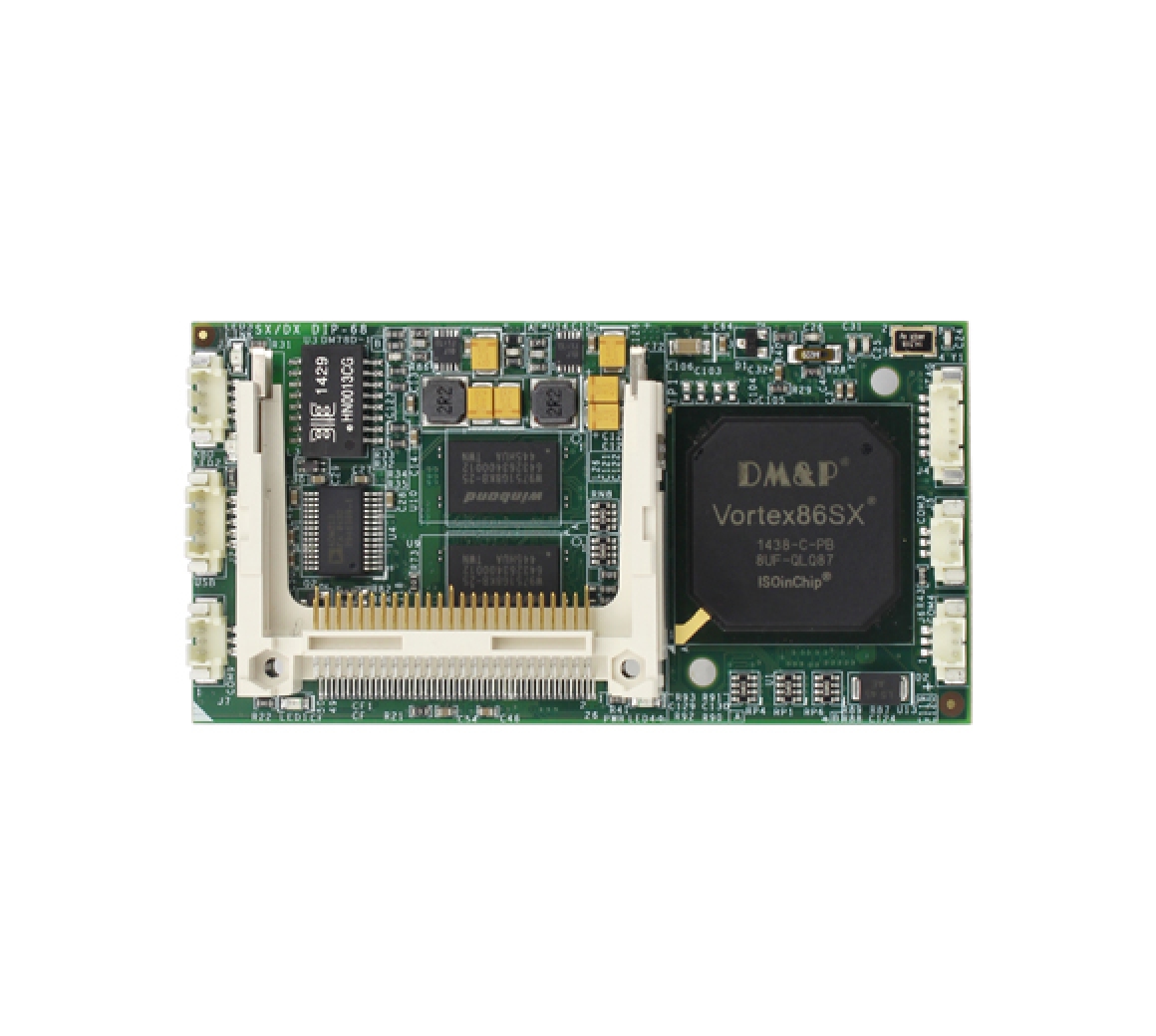

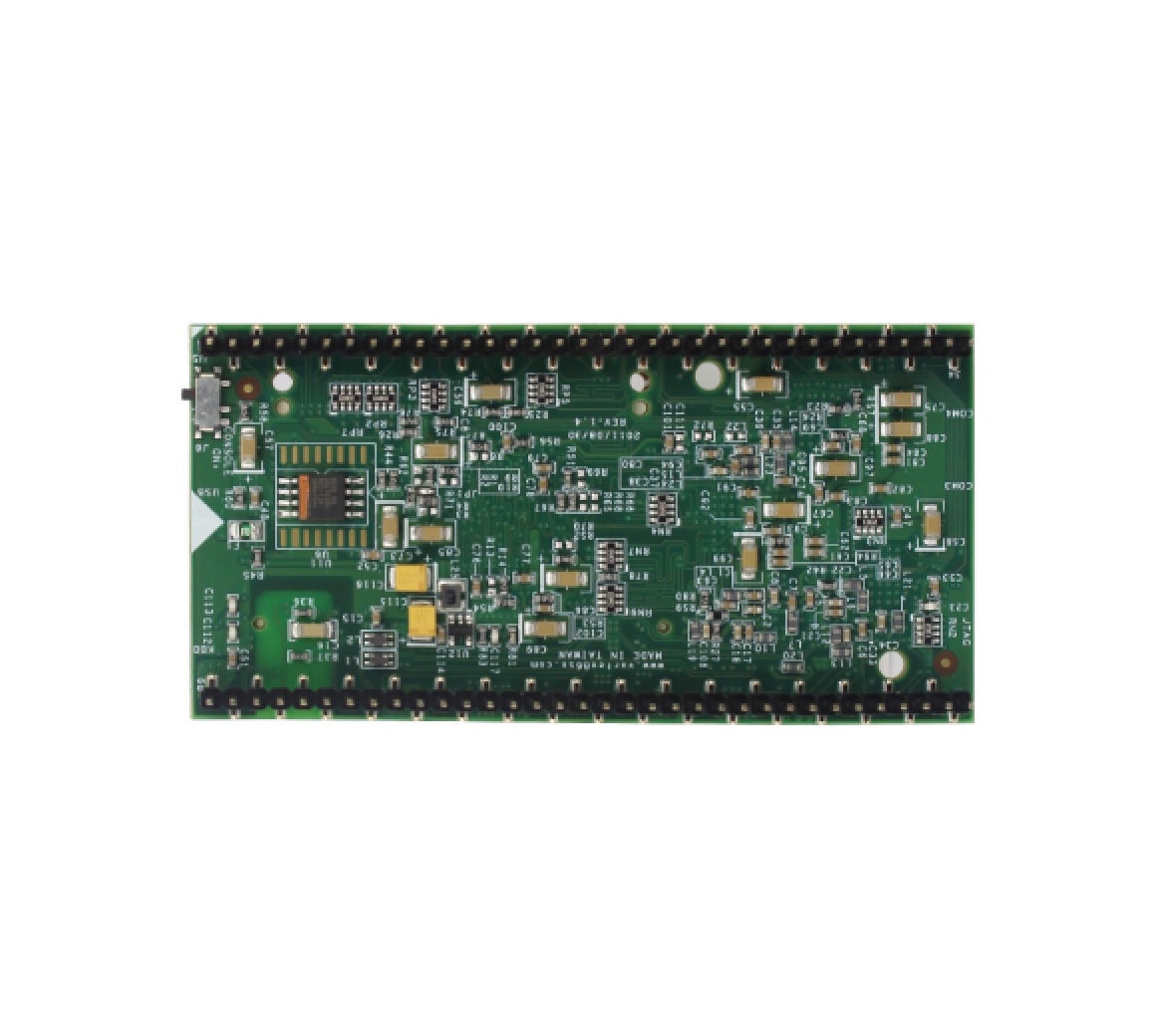

嵌入式单板电脑 系统模块 ICOP专有 VSX-6100-V2 VSX-6100-EVB
5S/3U/LAN/28GPIO/CF
Description
| 处理器 | DM&P SoC CPU Vortex86SX- 300MHz Real-Time Clock with Lithium Battery Backup |
| 缓存 | L1:16K I-Cache, 16K D-Cache |
| BIOS | AMI BIOS |
| 系统存储器 | 256MB DDR2 Onboard |
| 看门狗定时器 | Software programmable from 30.5 us to 512 seconds x2 sets(Watchdog 1 fully compatible with M6117D) |
| I/O接口 | RS-232 port x3 USB port x1 (USB 2.0 version) |
| 端口 | 1.25mm Ø 3-pin wafer for RS-232 x3 1.25mm Ø 4-pin wafer for USB x1 1.25mm Ø 4-pin wafer for KBD x1 1.25mm Ø 6-pin wafer for JTAG x1 Type I/II Compact Flash slot x1 |
| 闪存支持 | Onboard 2MB SPI Flash Disk (Driver: A) Type I/II CF Card |
| 功率要求 | Single Voltage +5V @ 340mA |
| 尺寸 | 90mm X 46mm (3.54 x1.81 inches) |
| 重量 | 30g |
| 工作温度 | -20°C ~ +70°C -40°C ~ +85°C (Optional) |
| VSX-6100-V2 | Vortex86SX DIP 68pin CPU Module with 256MB DDR2 |
| VSX-6100-EVB | Vortex86SX DIP 48/68pin CPU Module Development Board |
