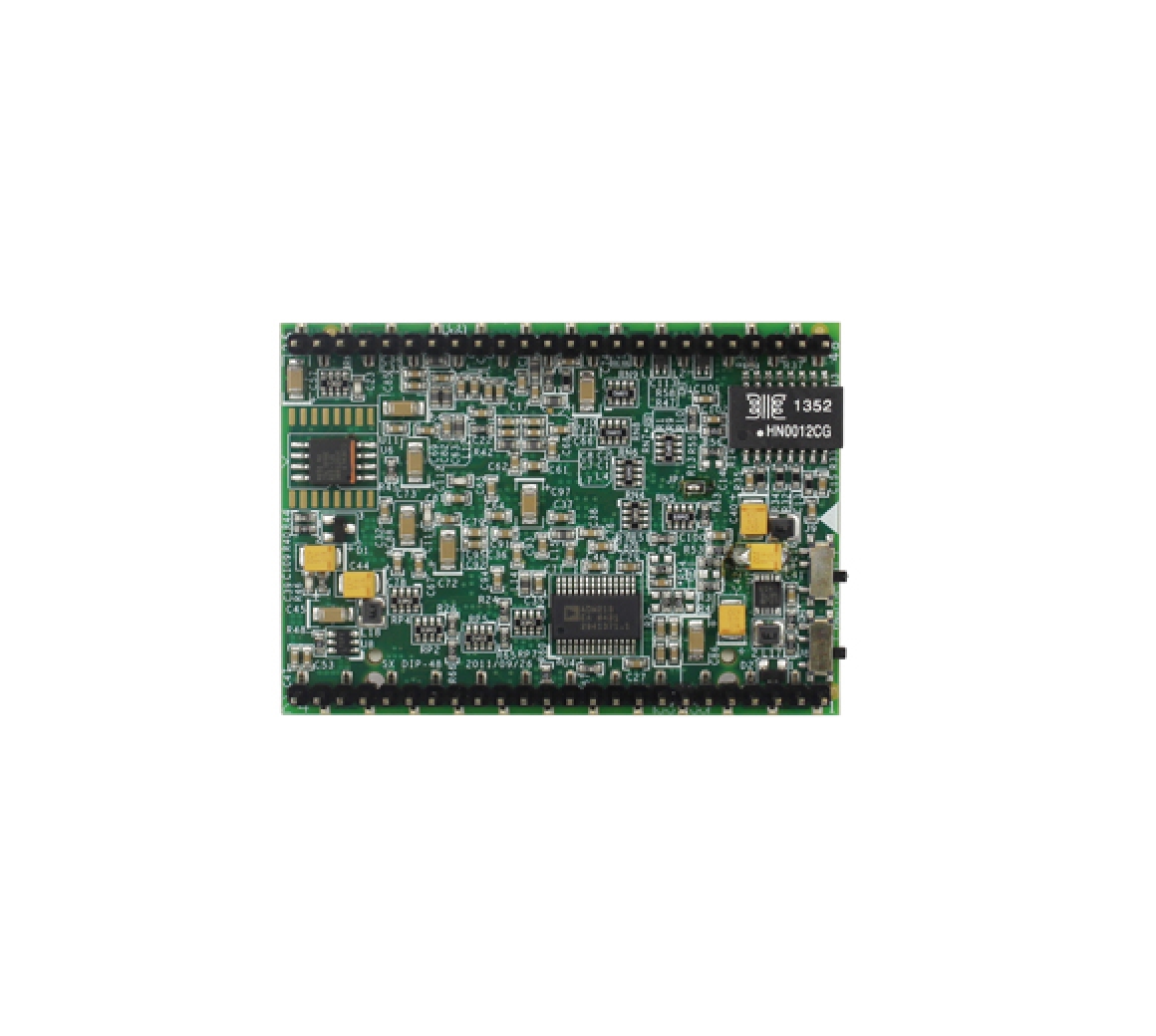

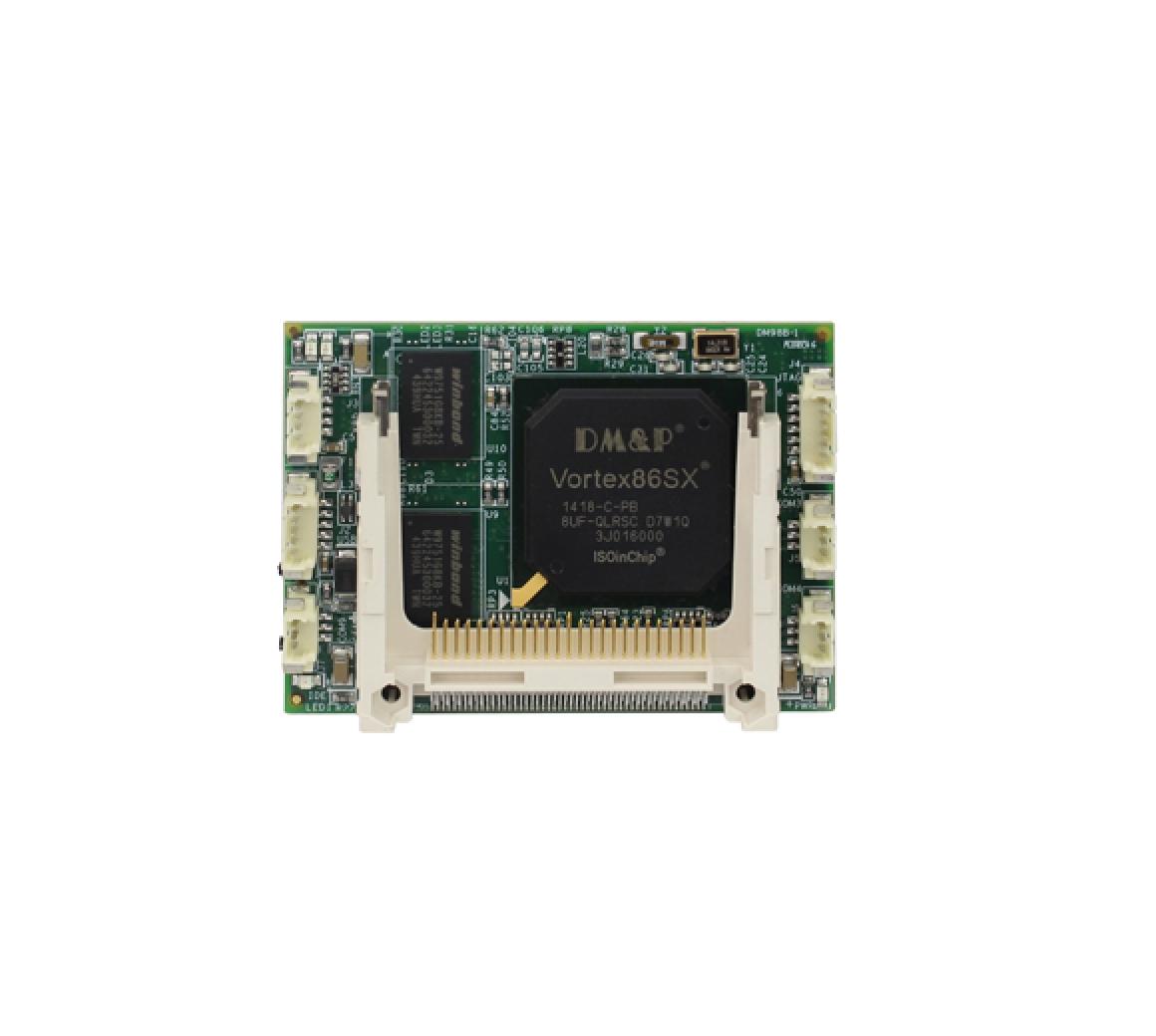

嵌入式单板电脑 系统模块 ICOP专有 VSX-6101-V2 VSX-6100-EVB
4S/3U/LAN/20GPIO/CF
Description
| 处理器 | DM&P SoC CPU Vortex86SX- 300MHz Real-Time Clock with Lithium Battery Backup |
| 缓存 | L1:16K I-Cache, 16K D-Cache |
| BIOS | AMI BIOS |
| 系统存储器 | 128/256MB DDR2 Onboard |
| 看门狗定时器 (0 & 1 Sets) |
Software programmable from 30.5μ sec. to 512 sec. x 2 sets (Watchdog 1 fully compatible with M6117D) |
| 网路 | Integrated 10/100Mbps Ethernet |
| 闪存支持 | Compact Flash Type I/II Onboard 2MB SPI Flash Disk |
| I/O接口 | RS-232 port x4 (TX /RX x3) USB port (Ver2.0) x3 10/100Mbps Ethernet port x1 |
| 端口 | 1.25mm 3-pin wafer for RS-232 x3 1.25mm 5-pin wafer for USB x1 1.25mm 4-pin wafer for Keyboard x1 1.25mm 6-pin wafer for JTAG x1 Type I/II Compact Flash slot x1 |
| 功率要求 | Single Voltage +5V @ 320mA |
| 重量 | 24g |
| 尺寸 | 64 x 46mm (2.52 x 1.81 inches) |
| 工作温度 | -20°C ~ +70°C -40°C ~ +85°C (Optional) |
| 料号 | 说明 |
| VSX-6101-V2 | Vortex86SX DIP 48pin CPU Module with 128MB DDR2 |
| VSX-6100-EVB | Vortex86SX DIP 48/68pin CPU Module Development Board |
