Description

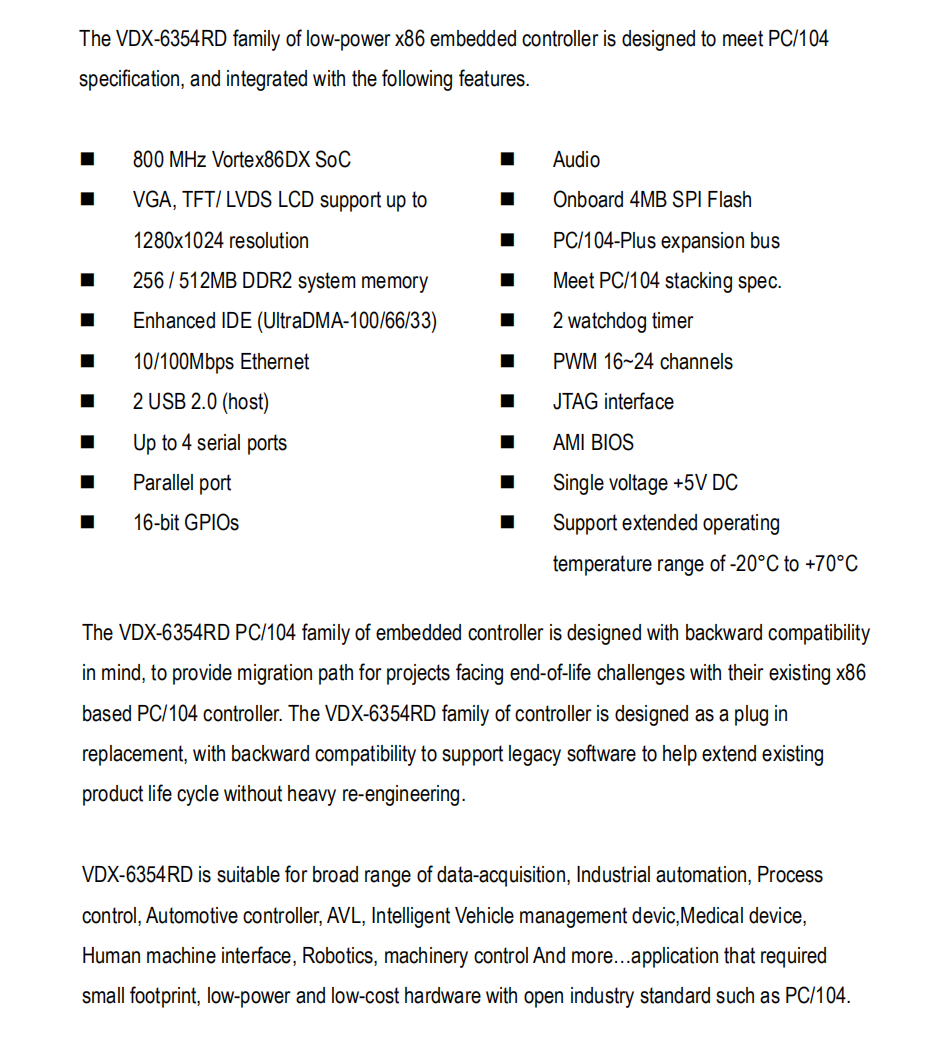

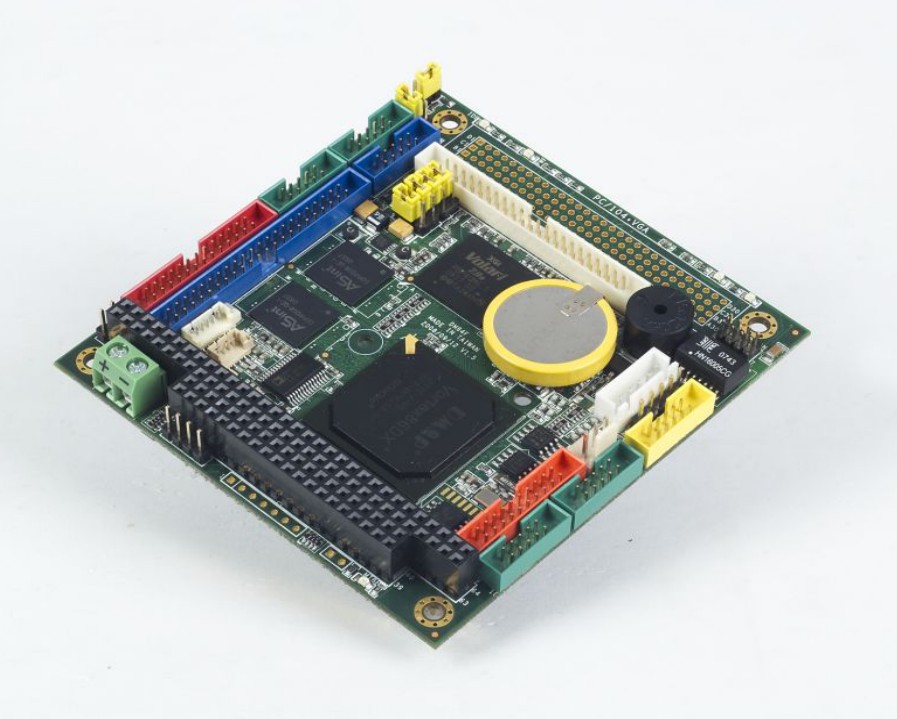

The VDX-6354 family of low-power x86 embedded controller is designed to meet PC/104
specification, and integrated with the following features.

„ 800 MHz Vortex86DX SoC
„ VGA, TFT/ LVDS LCD support up to
1280×1024 resolution
„ 256 / 512MB DDR2 system memory
„ Enhanced IDE (UltraDMA-100/66/33)
„ 10/100Mbps Ethernet
„ 2 USB 2.0 (host)
„ Up to 4 serial ports
„ Parallel port
„ 16-bit GPIOs

„ Audio
„ Onboard 4MB SPI Flash
„ PC/104-Plus expansion bus
„ Meet PC/104 stacking spec.
„ 2 watchdog timer
„ 16~24 PWM channels
„ JTAG interface
„ AMI BIOS
„ Single voltage +5V DC
„ Support extended operating
temperature range of -20°C to +70°C
The VDX-6354 PC/104 family of embedded controller is designed with backward compatibility in
mind, to provide migration path for projects facing end-of-life challenges with their existing x86
based PC/104 controller. The VDX-6354 family of controller is designed as a plug in
replacement, with backward compatibility to support legacy software to help extend existing
product life cycle without heavy re-engineering.
VDX-6354 is suitable for broad range of data-acquisition, Industrial automation, Process control,
Automotive controller, AVL, Intelligent Vehicle management devic,Medical device, Human
machine interface, Robotics, machinery control And more…application that required small
footprint, low-power and low-cost hardware with open industry standard such as PC/104

Specifications
Features VDX-6354
CPU DM&P SoC CPU Vortex86DX- 800MHz
Real Time Clock with Lithium Battery Backup
Cache L1:16K I-Cache, 16K D-Cache L2:128KB Cache
BIOS AMI BIOS
Bus Interface PC/104 Standard Compliant (Optional: PCI-104)
System Memory 256 / 512MB DDR2 Onboard
Watchdog Timer Software programmable from 30.5 us to 512 seconds x2
sets(Watchdog 1 fully compatible with M6117D)
VGA XGI Volari Z9s Chipset
VGA and TFT Flat Panel Interface Support
LVDS Flat Panel Interface Support (Optional)
Onboard 32MB VGA Memory
Support resolution up to 1280 x 1024,16MB colors
LAN Integrated 10/100M Ethernet
AUDIO CM119 USB Audio controller
I /O Interface
Enhanced IDE port (UltraDMA-100/66/33) x1
RS-232 port x3
RS-232/485/422 port x1 (RS485: Auto Direction)
Parallel port x1
USB port x2 (USB 2.0 version)
16-bit GPIO port x1
10/100Mbps Ethernet port x1

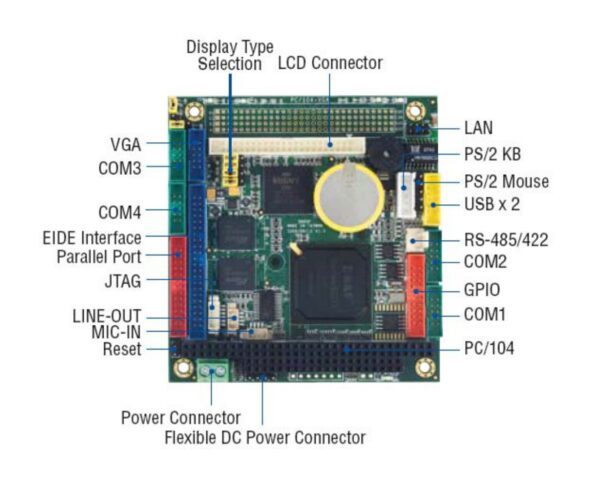

Connectors 2.00 mm ∅ 44-pin box header for IDE x1
2.00 mm ∅ 44-pin box header for LCD x 1
2.00 mm ∅ 10-pin box header for VGA x1
2.00 mm ∅ 10-pin box header for USB x1
2.00 mm ∅ 26-pin box header for Printer x1
2.00 mm ∅ 20-pin box header for 16-bit GPIO x1
2.00 mm ∅ 10-pin box header for RS-232 x4
2.00 mm ∅ 8-pin header for Ethernet x 1
2.54 mm ∅ 5-pin box header for Keyboard x1
2.54 mm ∅ 5-pin header for Mouse x1
2.54 mm ∅ 4-pin header for DC-in x1
2.54 mm ∅ 3-pin header for RS-485 x1
2.54 mm ∅ 2-pin header for Reset x1
2.54 mm ∅ 7-pin header for Redundancy x1(Opt)
2.54 mm ∅ 2-pin header for SYS-Fail-SW- x1(Opt)
1.25 mm ∅ 6-pin Wafer for JTAG x1
1.25 mm ∅ 4-pin Wafer for Line-out/MIC-in x2
Vortex86DX-6354 Vortex86DX™ PC/104 CPU Module 4

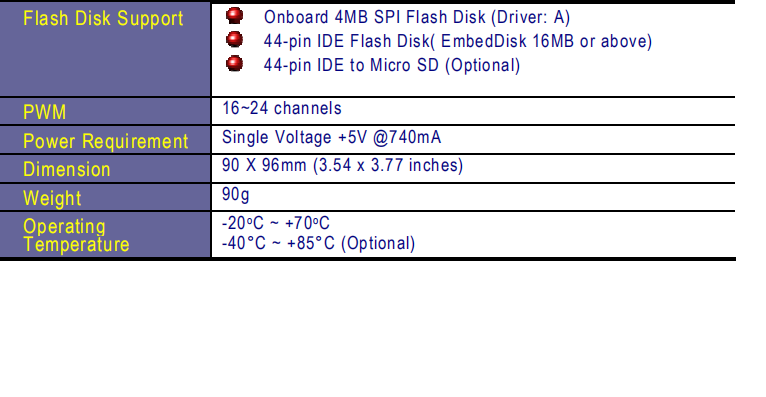

Flash Disk Support Onboard 4MB SPI Flash Disk (Driver: A)
44-pin IDE Flash Disk( EmbedDisk 16MB or above)
44-pin IDE to Micro SD (Optional)
Power Requirement Single Voltage +5V @740mA
Dimension 90 X 96mm (3.54 x 3.77 inches)
Weight 90g
Operating
Temperature
-20o
C ~ +70o
C
-40°C ~ +85°C (Optional)
