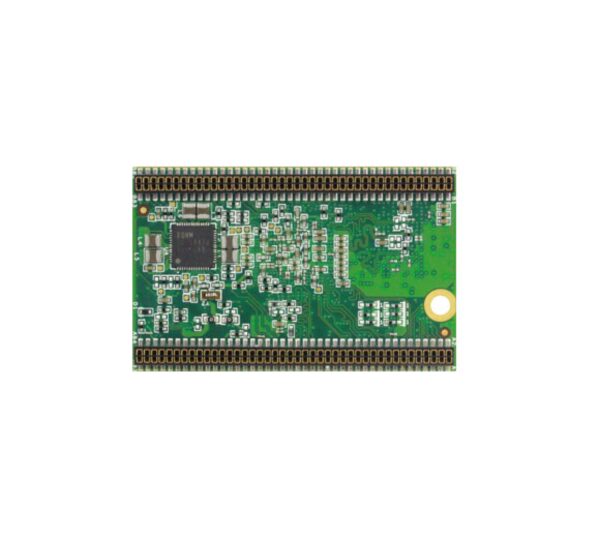

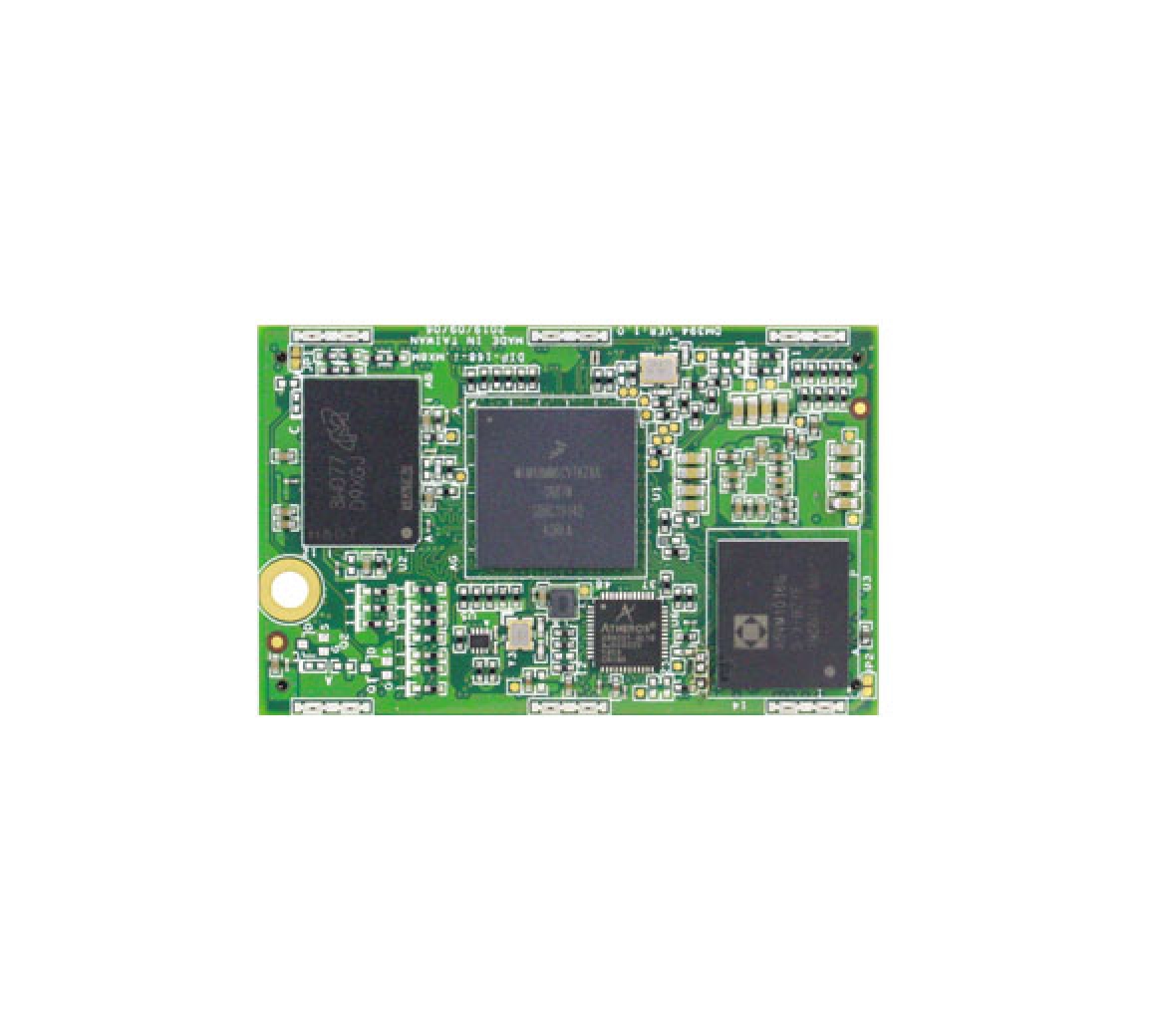

嵌入式单板电脑系统模块 ICOP专有 NX8MM-D168 NXP i.MX8M Mini-1.6GHz

Description

处理器	NXP i.MX8M Mini Quad, 4 x Cortex-A53 1.6GHz
图形处理器	GCNanoUltra for 3D acceleration GC320 for 2D acceleration
视频处理单元	Decode: 1080p60, H.265, H.264 Encode: 1080p60, H.264
Co-CPU	Cortex-M4
RAM	Onboard LPDDR4 1GB/2GB
Storage	Onboard eMMC 4GB ~ 64GB, MLC / SLC
显示器	MIPI-DSI, 4 data lanes, up to 1920×1080 60Hz
摄像机功能	MIPI-CSI, 4 data lanes
网路	Gigabit Ethernet x 1
音频	Up to 3 x I2S/SAI , S/PDIF input/output
PCIe	Gen 2.1 PCIe x 1
USB	USB 2.0 x 2
UART	Up to 4 x UART
eMMC/SDIO	Up to 2 x eMMC/SD/SDIO
SPI	Up to 3 x SPI
I2C	Up to 3 x I2C
PWM	Up to 4 x PWM
GPIO	Up to 40 x GPIO
工作温度	0° to 60° C or -40° to 85° C
相对湿度	10% to 90%
尺寸	55mm x 35mm
重量	8g
端口	168 pins. 2 x 2 x 42, pitch 1.27mm, Female
电源输入	+5V
操作系统支持	Yocto Linux, Android 9
