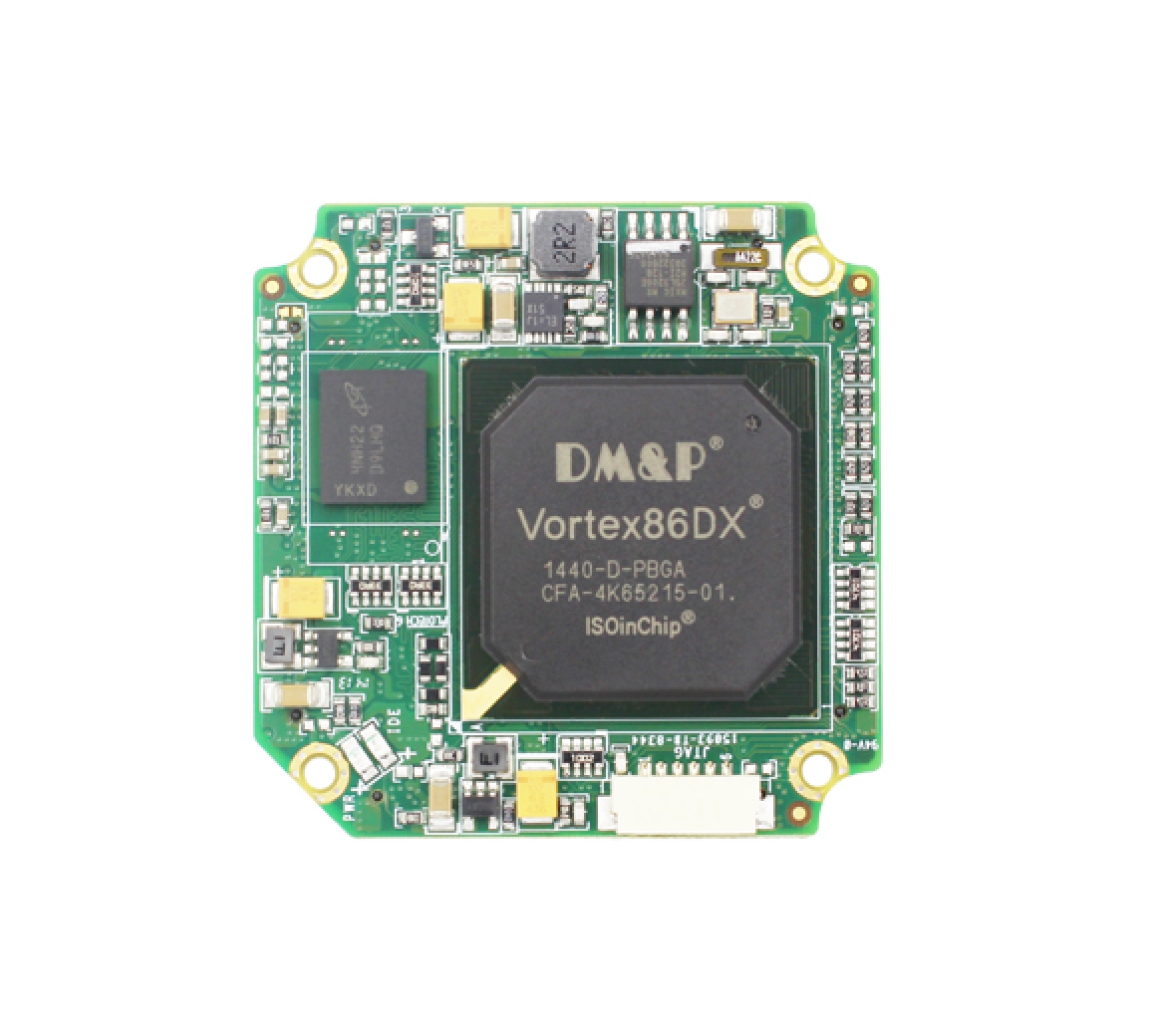

嵌入式单板电脑系统模块 ICOP专有 SOM200RD-XI SOM200RD52XINE1 SOM200RD52XIBE1

5S/4U/LAN/LPT/32GPIO/I2C/PWM/IDE

加入心愿单

Category: 昭营科技ICOP

Description
Reviews (0)

Description

处理器	DM&P SoC CPU Vortex86DX- 800MHz Real-Time Clock with Lithium Battery Backup
缓存	L1:16K I-Cache, 16K D-Cache,L2 Cache 256KB
总线	16-bit x-ISA Bus
BIOS	AMI BIOS
系统存储器	256 / 512MB DDR2 Onboard
看门狗定时器	Software programmable from 30.5µ sec. to 512 sec. x 2 sets (Watchdog 1 fully compatible with M6117D)
网路	Integrated 10/100Mbps Ethernet
闪存支持	Onboard 4MB SPI Flash Disk Onboard SST Flash Disk 512MB/1GB/2GB/4GB (Optional) MSTI EmbedDisk Module (16MB and above) 44-pin IDE to microSD (Optional)
PWM	24~32 Channels
I²C	Controlled by GP 34/35
串行控制	Controlled by GP 36/37
I/O接口	Enhanced IDE port (UltraDMA-100/66/33) x1 RS-232 port x5 (TX/RX x1) USB port (Ver2.0) x4 16-bit GPIO port x2 10/100Mbps Ethernet port x1
端口	1.27mm 76-pin box header for signal x4 1.25mm 6-pin wafer for JTAG x1
功率要求	Single Voltage +5V @ 330mA
尺寸	52 (L) x 52 (W) x 10.5 (H)mm (With Cover)
重量	25g
工作温度	-20°C ~ +70°C -40°C ~ +85°C (Optional)

料号	说明
SOM200RD52XINE1	Vortex86DX SOM200 CPU module w/256MB DDR2
SOM200RD52XIBE1	Vortex86DX SOM200 CPU module w/256MB DDR2, NAND Flash 512MB
SOM200DX-DEV-XI	SOM200RD-XI Development Board
ICOP-2811	PC/104 VGA/LCD Display Module
ICOP-0091	PC/104 interface to ISA Bus
