aaeon 研扬科技 工业主板 MAX-Q470A

Description

• 10th Generation Intel® Core™ LGA1200 Processor
• Supports Power 10 Core 80W max.
• DDR4 2933/2666/2400 MHz, max. 128GB
• Three Independent Displays: HDMI x 3 (2.0 x 1, 1.4 x 2), VGA x 1, LVDS x 1
• Dual Intel® Gigabit Ethernet, LAN1 Supports iAMT 12.0
• USB 3.2 Gen2 x 2, USB 3.2 Gen1 x 7, USB 2.0 x 2
• BIOS recovery function, convenient way to flash BIOS if needed
• TPM Onboard

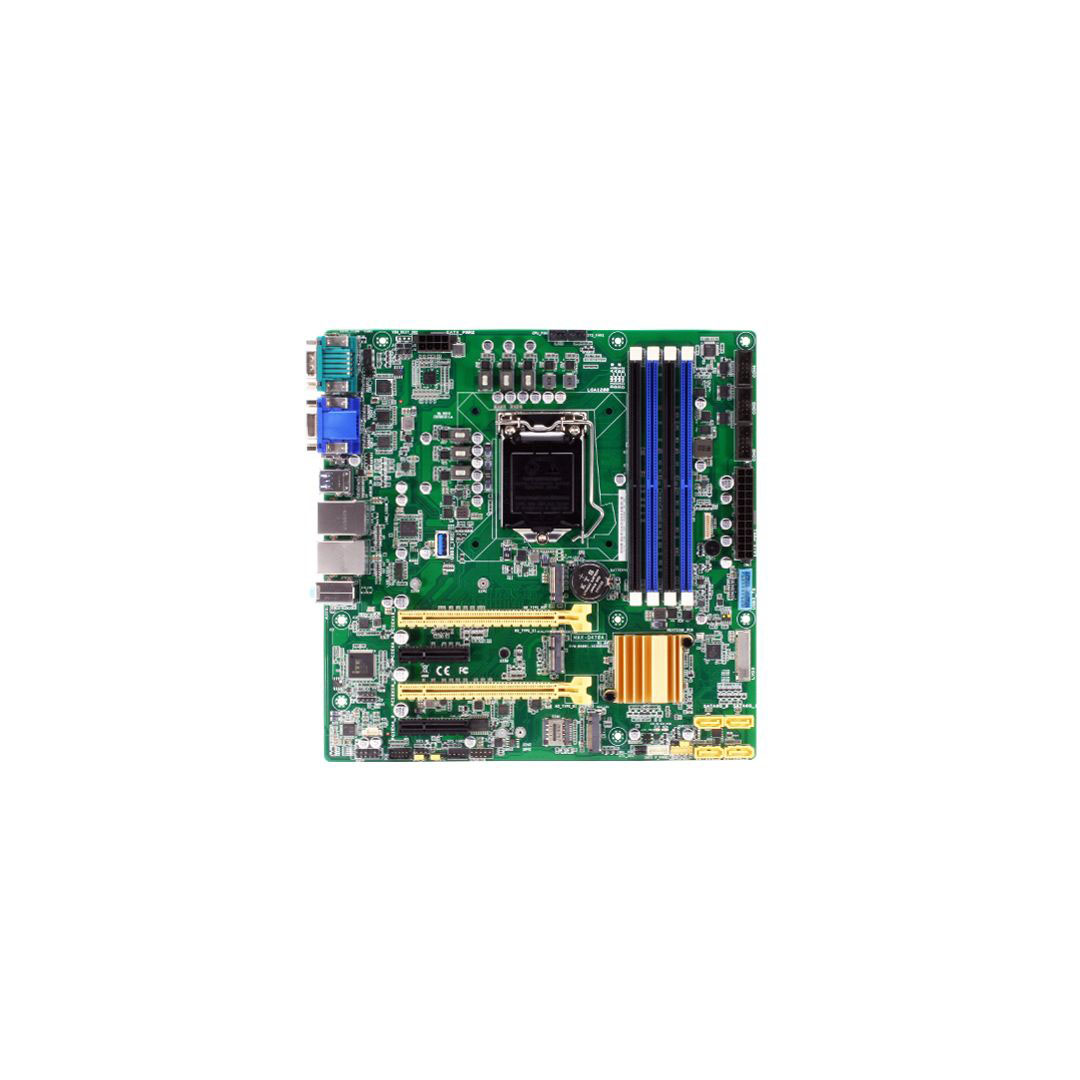

The MAX-Q470A industrial micro ATX motherboard brings the performance of 10th Generation Intel® Core™ processors (formerly Comet Lake) to embedded computing platforms, supporting 10-core processors up to 65W TDP. With up to 128GB of RAM (4 x 32GB DDR4), the MAX-Q470 delivers the performance needed to power the most intensive applications, from workstations to edge AI systems and even cryptocurrency mining.

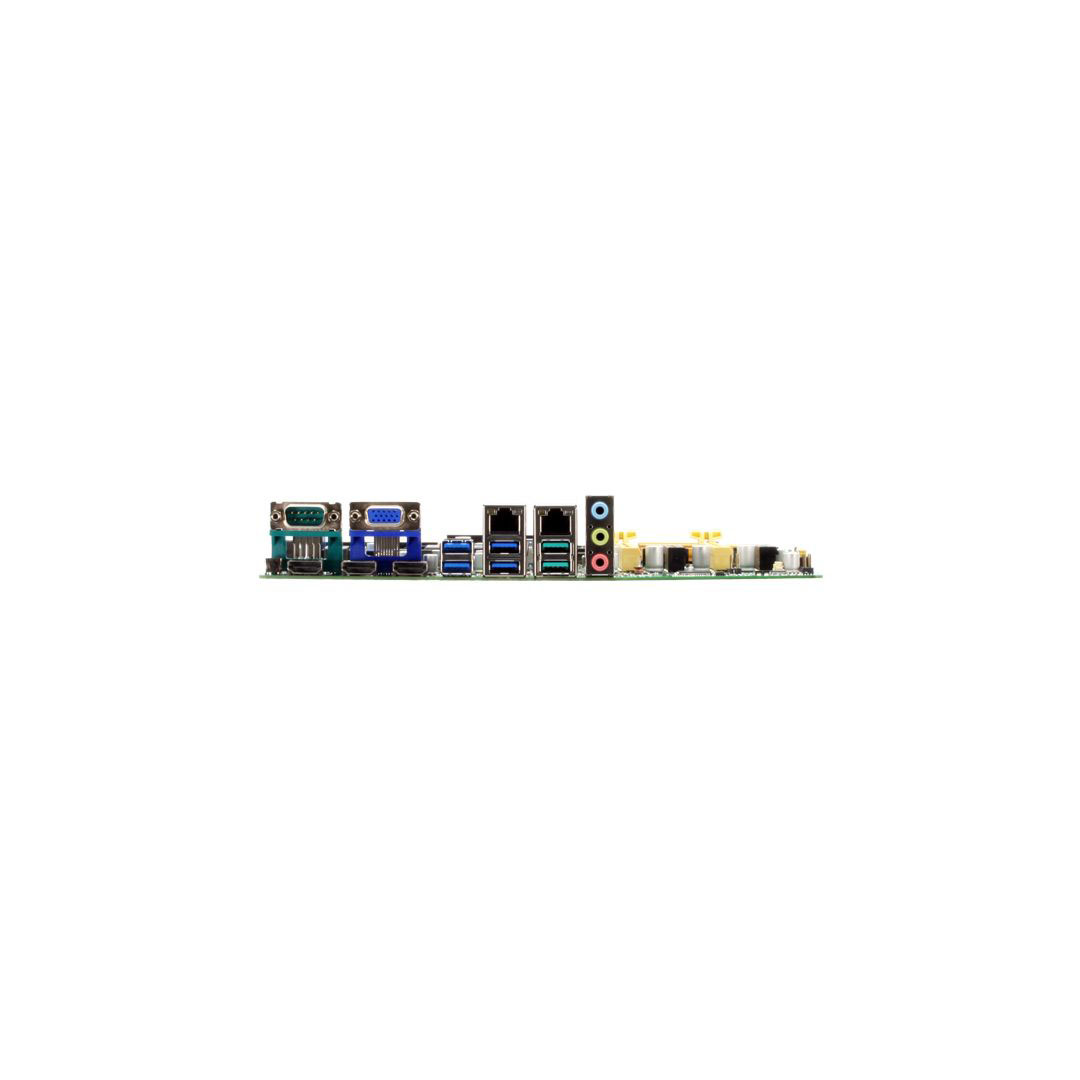

The board offers expandability with two PCIe 3.0 [x16] slots and two PCIe 3.0 [4x] slots to easily add on GPUs, AI accelerators, frame grabbers, and more. Other expansion options include M.2 2280 PCIe [x4] with support for NVMe, as well as M.2 3052 and SIM card slot for 5G deployment. The MAX-Q470A also offers easy maintenance features including a BIOS recover button on the rear I/O panel, and vertical USB3.2 Gen 1 Type A port on the board for greater data security.
