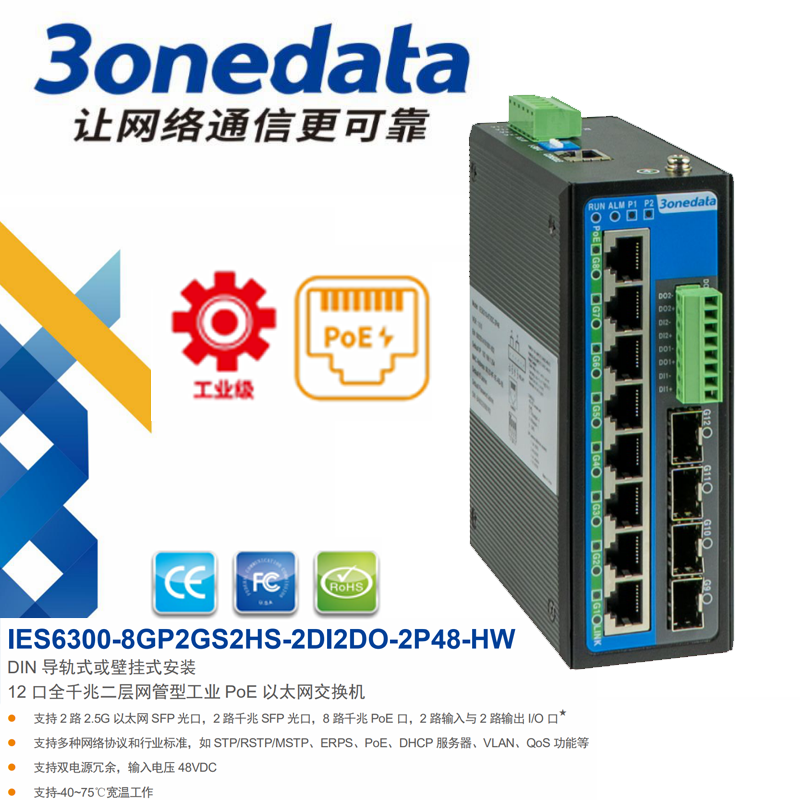

IES6300 Series DIN-Rail or Wall Mounting 10/12-Port Layer 2 Managed Industrial Gigabit Ethernet Switch (Optional PoE or I/O)

Description

  IES6300 Series
DIN-Rail or Wall Mounting
10/12-Port Layer 2 Managed Industrial Gigabit Ethernet Switch (Optional PoE
or I/O)
 Support 2 2.5G SFP slots, 2 Gigabit SFP slots (optional), 8 Gigabit copper ports (optional PoE), 2 DI and 2
DO (optional)
 Adopt patented Ring technology, support single ring, coupling ring, chain, Dual-homing, automatic
recovery time of network failure < 20ms
 Support multiple network protocols and industry standards, such as STP/RSTP/MSTP, ERPS, PoE, DHCP, VLAN, QoS, IGMP Snooping, LLDP, ACL and SNMP.  Support 4 optional power supplies: 24VDC, 48VDC, 12~48VDC and 220VAC/DC
 The maximum PoE power consumption of 24VDC products is 120W, and the maximum PoE power
consumption of 48VDC products is 240W
 Support -40~75℃ wide operating temperature range

IES6300 Series
DIN-Rail or Wall Mounting
10/12-Port Layer 2 Managed Industrial Gigabit Ethernet Switch (Optional PoE
or I/O)
 Support 2 2.5G SFP slots, 2 Gigabit SFP slots (optional), 8 Gigabit copper ports (optional PoE), 2 DI and 2
DO (optional)
 Adopt patented Ring technology, support single ring, coupling ring, chain, Dual-homing, automatic
recovery time of network failure < 20ms
 Support multiple network protocols and industry standards, such as STP/RSTP/MSTP, ERPS, PoE, DHCP, VLAN, QoS, IGMP Snooping, LLDP, ACL and SNMP.  Support 4 optional power supplies: 24VDC, 48VDC, 12~48VDC and 220VAC/DC
 The maximum PoE power consumption of 24VDC products is 120W, and the maximum PoE power
consumption of 48VDC products is 240W
 Support -40~75℃ wide operating temperature range

Features and Benefits
SNMPv1/v2c/v3 is used for network management of various levels
RMON can be used for efficient and flexible network monitoring
QoS supports real-time traffic classification and priority setting
LLDP can achieve automatic topology discovery, which is convenient for visual
management
DHCP server and DHCP client could be used for allocating IP address of different
strategies
DHCP Snooping can ensure DHCP client gets IP address from legal DHCP server
DHCP relay function can realize IP address, gateway, DNS configuration cross
network segment
File management is convenient for the device rapid configuration and online upgrading
User privilege classification configuration can set user privilege level
SSH configuration and HTTPS configuration can improve device’s management

security and guarantee data access security
Support NAS network access service and provide security assurance for multiple
services
MEP function can determine the scope and boundary of maintenance domain
Ring and STP/RSTP/MSTP can achieve network redundancy, preventing network
storm
EPRS function can realize link backup and improve the reliability of network
Relay alarm is convenient for troubleshooting of construction site
Storm suppression can restrain broadcast, unknown multicast and unicast
VLAN is used for simplifying network planning
Port Trunking and LACP can increase network bandwidth and enhance the reliability of
network connection to achieve optimum bandwidth utilization
IGMP Snooping can be used for filtering multicast traffic to save the network bandwidth
PoE could power device over Ethernet, thus decreasing the cable connection of
powered devices
Support I/O port input and output, I/O status alarm and control remote device
Support DDM (digital diagnostic monitoring) function, which can monitor the optical
power, temperature and other real-time parameters of SFP fiber module with DDM
function, facilitating the link default diagnosis of optical fiber
Network diagnosis and troubleshooting could be conducted via Ping and cable
detection
Port mirroring can conduct data analysis and monitoring, which is convenient for online
debugging

Specification
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X

IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
ITU-T G.8032 for ERPS
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP
IEEE 802.3af for PoE
IEEE 802.3at for PoE+

Management
SNMP v1/v2c/v3 Centralized Management of Equipment, QoS, PoE, DHCP Server, DHCP Snooping, DHCP Relay, Static MAC Address, LLDP, Storm Suppression, User Password, Login Method, File
Management, Log Management, Port Statistics

Security
User Privilege Classification, Authentication Method Configuration, SSH Configuration, HTTPS Configuration, Access Control, SNMP, RMON, Port Limit Control, Port Security, NAS, ACL, Ethernet Services, RADIUS Server Authentication, TACACS + Server Authentication, Port
Alarm, DC Power Supply Alarm, IO Alarm, Loop Protection

Switch Function 802.1Q VLAN, Static Aggregation, LACP
Unicast / Multicast IGMP Snooping, Unicast MAC
Redundancy Technology Ring, STP/RSTP/MSTP, ERPS
Troubleshooting Ping, Cable Detection, DDMI, Port Mirroring
Time Management NTP, Time Zone Configuration
PoE (optional)
The maximum power of PoE port: 30W
The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6

Interface
Gigabit Copper Port: 10/100/1000Base-T(X), RJ45, Automatic Flow
Control, Full/Half Duplex Mode, MDI/MDI-X
Autotunning, optional PoE
Gigabit SFP Slot : 100/1000Base-X self-adaption or forced mode, SFP
slot
2.5G SFP Slot: 100/1000/2.5GBase-X self-adaption or forced mode
SFP slot
I/O port (optional): Support 2 inputs and 2 outputs, 8-pin 3.81mm pitch

terminal blocks, support dry contact input, relay-type
output
Console port: CLI command line management port(RS-232), RJ45
Alarm Port: 6-pin 5.08mm pitch terminal blocks, relay occupies 2 pins
and 1 relay alarm information output is supported, the
current load capability is 1A@30VDC or 0.3A@125VAC

Indicator
Running indicator, alarm indicator, power supply indicator, interface
indicator, PoE indicator (optional), I/O output indicator (optional), I/O
input indicator (optional)

Switch Property
Transmission mode: store and forward
MAC address: 8K
Packet buffer size: 4Mbit
Backplane bandwidth: 30G
Switch time delay: <10μs

Power Supply
IES6300-8GT2GS2HS-2P48,
IES6300-8GT2HS-2P48,
IES6300-8GT2GS2HS-2DI2DO-2P48:
 Voltage input: 12~48VDC
 Connection method: 6-pin 5.08mm pitch terminal blocks
(includes 4-pin power supply)
 Power supply quantity: dual power supply redundancy backup
 Connection protection: non-polarity
 Overcurrent protection: 3A
IES6300-8GP2GS2HS-2P24-120W,
IES6300-8GP2HS-2P24-120W,
IES6300-8GP2GS2HS-2DI2DO-2P24-120W:
 Power supply input: 24VDC
 Connection method: 6-pin 5.08mm pitch terminal blocks
(includes 4-pin power supply)
 Power supply quantity: dual power supply redundancy backup
 Connection protection: anti-reverse connection
 Overcurrent protection: 12A
IES6300-8GP2GS2HS-2P48-240W,
IES6300-8GP2HS-2P48-240W,
IES6300-8GP2GS2HS-2DI2DO-2P48-240W:
 Power input: 48VDC
 Connection method: 6-pin 5.08mm pitch terminal blocks
(includes 4-pin power supply)
 Power supply quantity: dual power supply redundancy backup

Connection protection: anti-reverse connection
 Overcurrent protection: 5A
IES6300-8GT2GS2HS-P220,
IES6300-8GT2HS-P220:
 Power input: 220VAC/DC
 Connection method: 6-pin 5.08mm pitch terminal blocks
(includes 4-pin power supply)
Power Consumption
IES6300-8GT2GS2HS-2P48, IES6300-8GT2GS2HS-2DI2DO-2P48:
No-load: ≤ 5.76W@48VDC
Full-load: ≤12W@48VDC
IES6300-8GP2GS2HS-2P48-240W,
IES6300-8GP2GS2HS-2P24-120W,
IES6300-8GP2GS2HS-2DI2DO-2P48-240W:
No-load: ≤ 5.76W@48VDC
Full-load: ≤ 132W@24VDC (with 120W PoE load)
≤ 252W@48VDC (with 240W PoE Load)

Working Environment
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95% (no condensation)
Physical Characteristic
Housing: IP40 protection, metal
Installation: DIN-Rail or wall mounting
Weight: ≤ 0.78kg
Dimension (W x H x D): 53mm×138mm×110mm
Industrial Standard
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
IEC 61000-4-5 (Surge), Level 3
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication CE, FCC, RoHS
Warranty 5 years

Ordering Information
Available Models
Gigabit
RJ45 LAN
Port
SFP Slot
I/O
Port
PoE
Power
Power Supply
Non- PoE
PoE Gigabit 2.5G Input Range Quantity
IES6300-8GT2GS2HS-2P48 8 — 2 2 — — 12~48VDC 2
IES6300-8GP2GS2HS-2P24-120W — 8 2 2 — 120W 24VDC 2
IES6300-8GP2GS2HS-2P48-240W — 8 2 2 — 240W 48VDC 2
IES6300-8GT2GS2HS-P220 8 — 2 2 — — 220VAC/DC 1
IES6300-8GT2HS-2P48 8 — — 2 — — 12~48VDC 2
IES6300-8GP2HS-2P24-120W — 8 — 2 — 120W 24VDC 2
IES6300-8GP2HS-2P48-240W — 8 — 2 — 240W 48VDC 2
IES6300-8GT2HS-P220 8 — — 2 — — 220VAC/DC 1
IES6300-8GT2GS2HS-2DI2DO-2P48 8 — 2 2 2 — 12~48VDC 2
IES6300-8GP2GS2HS-2DI2DO-2P24- 120W — 8 2 2 2 120W 24VDC 2
IES6300-8GP2GS2HS-2DI2DO-2P48- 240W — 8 2 2 2 240W 48VDC 2
