aaeon 研扬科技 工业级主板 MIX-Q370D2

Description

• 8th/9th Gen. Intel® Core™ LGA1151 Processor
• DDR4 DRAM Support, 2666MHz, Max. 64GB
• M.2 Slot (M key; NVME/SATA) x 1, M.2 Slot (E key) x 1
• USB 3.2 Gen 2 Port x 6, USB 2.0 Port x 6
• Intel® Gigabit Ethernet x 2
• SATA 6.0 Gb/s x 2
• PCI-Express [x16] (Gen3) x 1
• 12VDC input

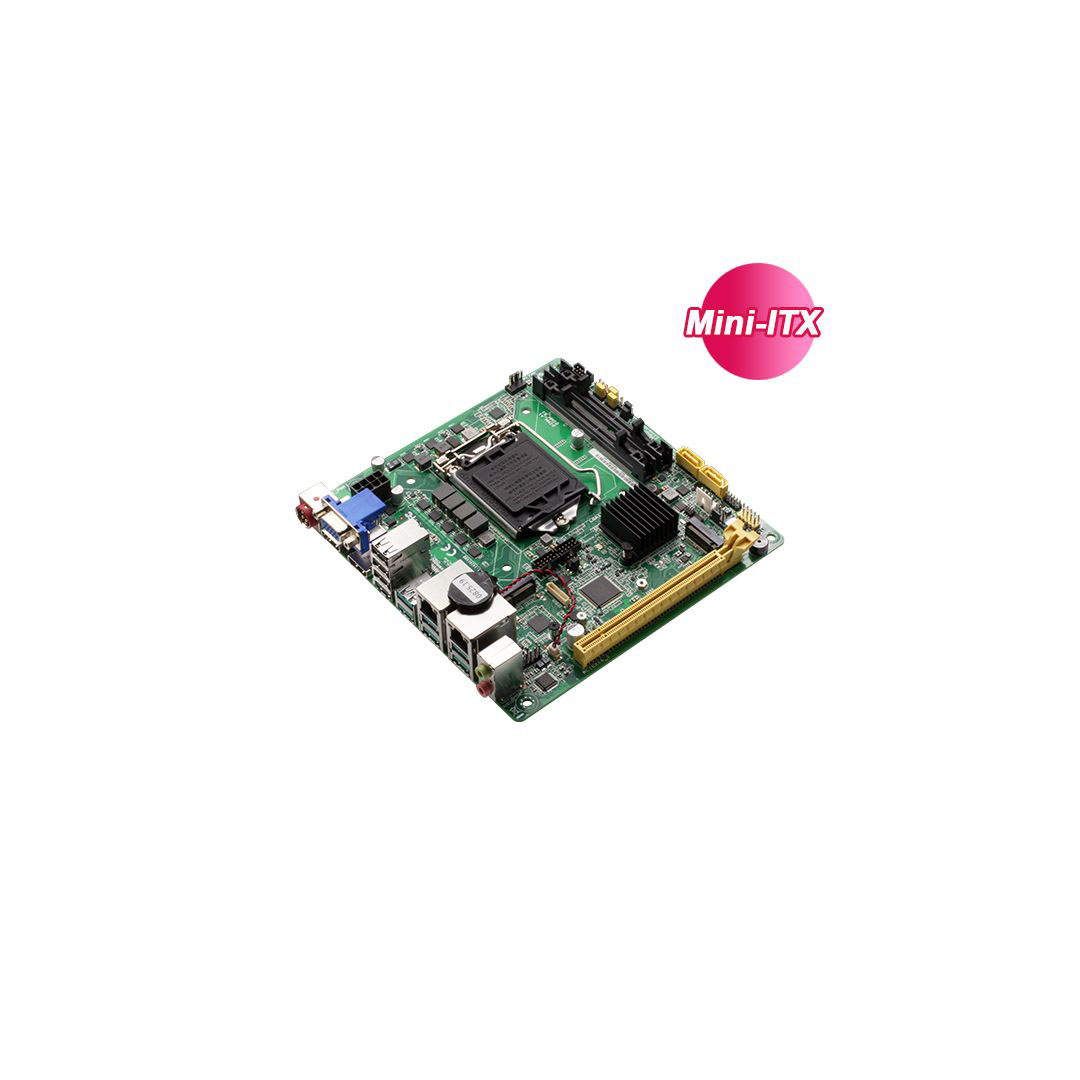

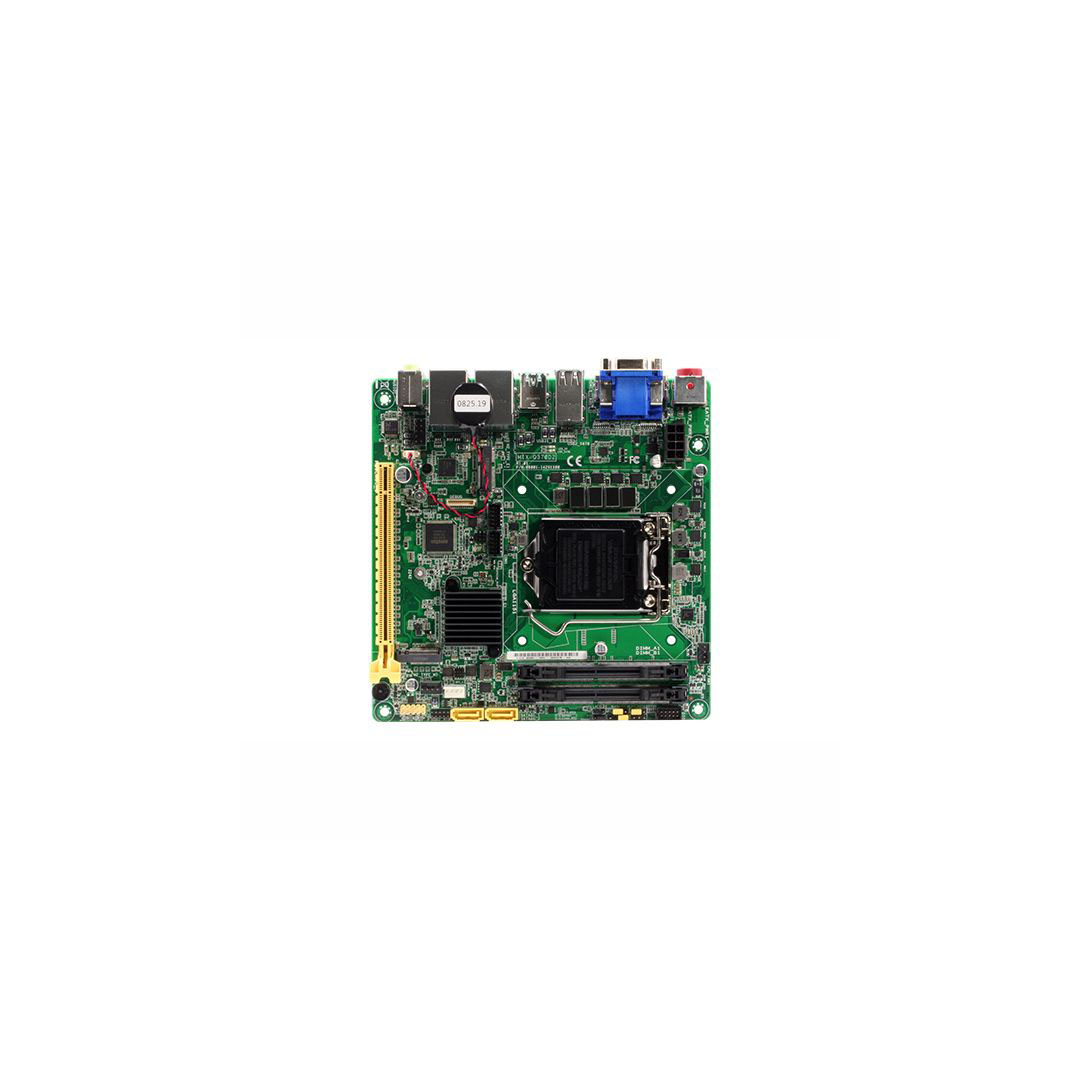

The MIX-Q370D2 from AAEON combines the power of the 8th and 9th Generation Intel® Core™ processors (formerly Coffee Lake, Coffee Lake Refresh) with a full I/O suite on the flexible Mini-ITX form factor. The MIX-Q370D2 provides users with six USB 3.2 Gen 2 ports, six USB 2.0 ports, and display output from HDMI, VGA and eDP. It also offers M.2 with NVMe to support the fastest storage options available. The MIX-Q370D2 is designed with the features needed to power any industrial computing application.

8th/9th Generation Intel® Core™: MIX-Q370D2 supports the 8th/9th Gen Intel® Core™ i3/i5/i7 processors (formerly Coffee Lake, Coffee Lake Refresh), offering top end CPU performance for any task.

Faster Computing: MIX-Q370D2 supports up to 64 GB of DDR4 SODIMM memory to help unlock your processor’s performance. Along with M.2 M-Key (2280/2242) slot with support for NVMe and SATA storage, the MIX-Q370D2 won’t slow down your vital applications.

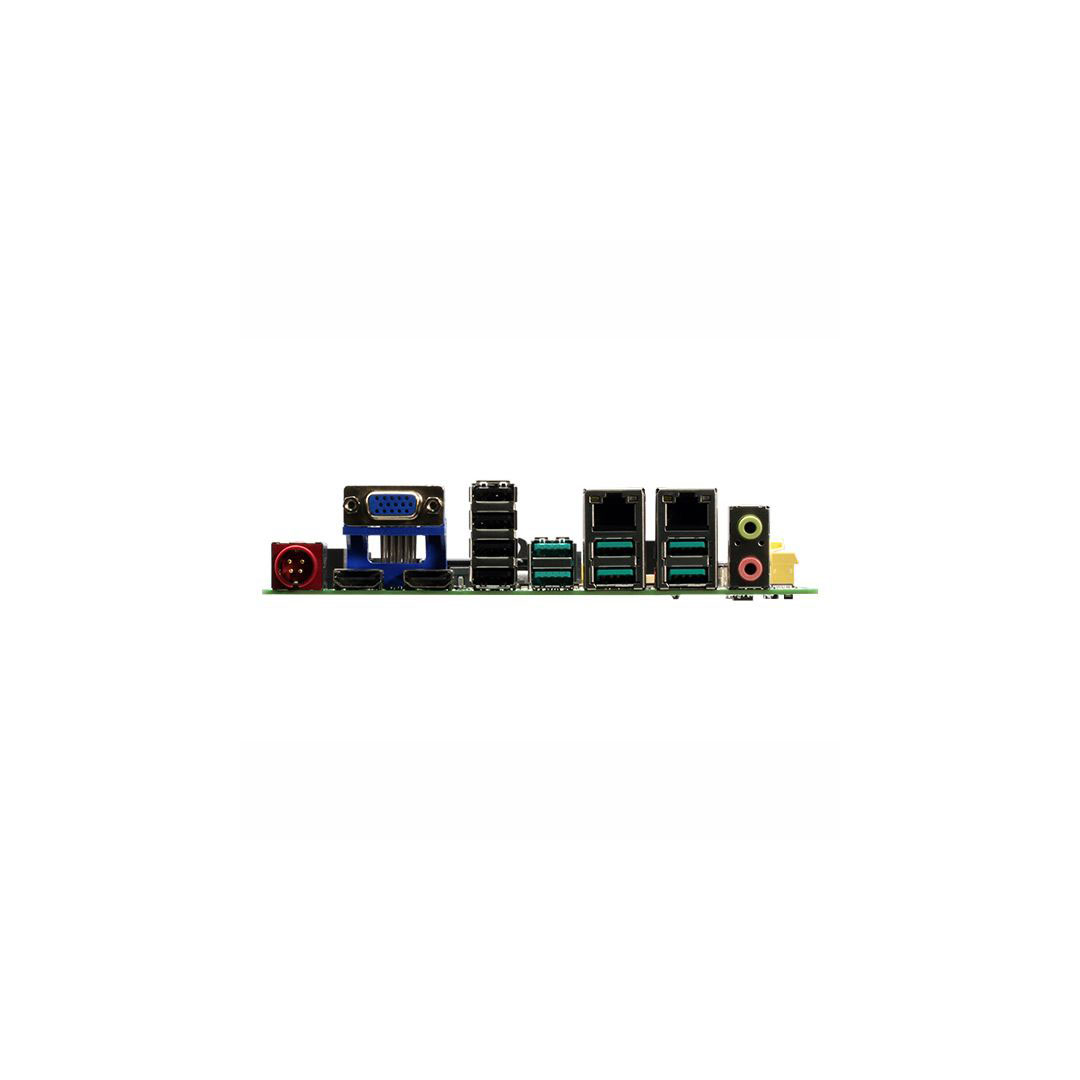

Full Featured I/O: MIX-Q370D2 provides a full suite of I/O ports including six USB 3.2 Gen 2 ports, four USB 2.0, and two Gigabit Ethernet LAN ports. Display support includes two HDMI, one VGA port and eDP.

PCI Express: MIX-Q370D2 includes PCIe 3.0 [x16] expansion slot to support VGA graphics cards to power performance demanding AI and edge computing applications. The board also offers an M.2 E-Key (2230) slot for further expansion.

Industrial Applications: The MIX-Q370D2 is already proving itself in the real world, powering industrial AI applications including visual inspection of battery production lines, helping to increase safety and accuracy of manufacturing facilities.
